High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

Name: High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal
Brand: CNSME
SKU: SHG/350TU
Rating: 5 (116 reviews)

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE

Model Number: SHG/350TU

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood Crate

Delivery Time: 20 Working Days

Payment Terms: T/T, Western Union

Supply Ability: 30 Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    sand pumping machine, gravel suction pump


Pressure:	High Pressure	Theory:	Centrifugal
Use:	Sand & Gravel	Structure:	Single Stage
Power:	1200Kw	Feature:	Single Casing

Pressure:	High Pressure
Theory:	Centrifugal
Use:	Sand & Gravel
Structure:	Single Stage
Power:	1200Kw
Feature:	Single Casing

Description

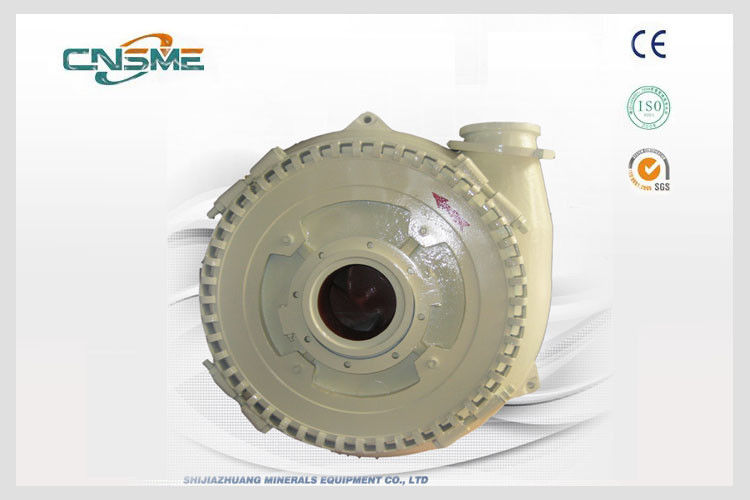

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal

Introduction:

High pressure sand pump SHG/350TU is the biggest model among the high head gravel pumps that we can make. It is not only a good choice for applications where high pressure is required, but also is widely used to transport very robust slurries like big stands and stones.

Type SHG high head gravel pump is found in wide use for industries like sand and gravel, quarries, dredging and extraction. It is single staged with only one closed type impeller with 3 blades, which allows big solids to pass through its impeller passage.

Specifications:

Model	SHG-350T
Outlet	14-inch
Capacity	720-3600m3/h
TDH	10-70m
Rated Motor Power	1200Kw
Speed	300-500r/min
NPSH	3-6m

Explosive View of SG Gravel Pumps:

Gravel Pump

Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

A05 Material

Typical Applications:

Sand and Gravel

Sand Excavation

Hydraulic Mining

Cyclone Feeds

Slag Granulation

Tunnelling

Performance Curve:

High Pressure Gravel Pump with Full Flow Gland Packing Box Shaft Seal 2
