6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO certificate /CE certificate /EAC certificate

Model Number: SH/100E (6/4E-)

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood Crate

Delivery Time: 7 Working Days

Payment Terms: T/T,L/C, D/A, D/P,Western Union

Supply Ability: 30 Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

4 inch heavy duty slurry pump

,

coal washery heavy duty slurry pump

,

4 inch heavy duty sludge pump

Flowrate:
162-360m3/hr
Head:
12-56m
Speed:
800-1550rpm
Efficiency:
Max. 65%
Impeller:
5-Vane Closed Type
Power:
Max. 60Kw
Application:
Sewage,mining,Transfer Slurry
Warranty:
1 Year Warranty(except Wearing Parts)
Flowrate:
162-360m3/hr
Head:
12-56m
Speed:
800-1550rpm
Efficiency:
Max. 65%
Impeller:
5-Vane Closed Type
Power:
Max. 60Kw
Application:
Sewage,mining,Transfer Slurry
Warranty:
1 Year Warranty(except Wearing Parts)
Description

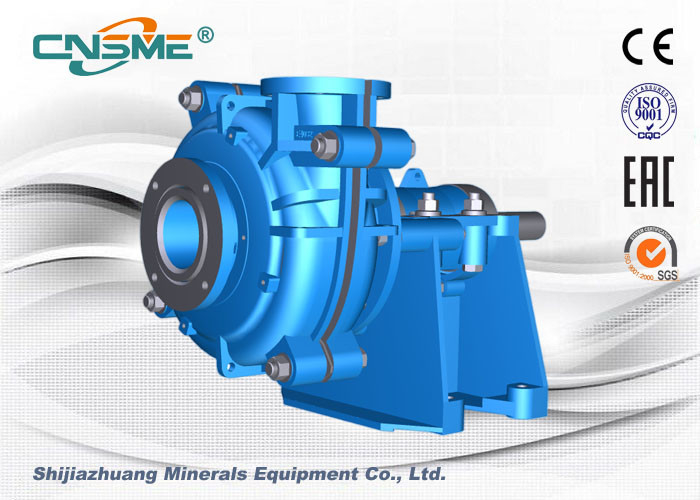

6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery

 6 / 4E - 4 Inch Heavy Duty Centrifugal Slurry Pumps With A05 A49 High Abrasion Resistant Liners For Coal Washery

1.Discription of CNSME® SH/100E (6/4E-) Slurry Pump:

CNSME® SH/100E (6/4E-) centrifugal Slurry Pump is designed for heavy output, abrasive and corrosive, rolling mill discharge and efficient processes.

Our pump is used in hard rock, dredging, pulp and paper, as well as industrial business around the world.

We have exported the pumps to more than 20 countries to the world.Overseas service is available for customers.

We will use our quality and service to attract you and win you-an honorable friend and partner.

6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery 0

Features of CNSME® SH/100E (6/4E-):



1.Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.

2.Interchangeable anti-abrasive wet parts made of high-chrome alloys.

3.The discharge branch can be oriented to any eight positions at the interval of 45 degrees.

4. Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.

5.The shaft seal uses the packing seal, expeller seal and mechanical seal.



2.Data Sheet of CNSME® SH/100E (6/4E-) Slurry Pump::


Slurry Pump SH Series Metal Slurry Pump Specifications

Pump
Model
S×D
(inch)
Allowable
Max. Power (kw)
Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
Weight
(kg)
Impeller m3/h l/s
SH/25B(R) 1.5×1 15 Metal
(A05)
12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152 91
SH/40B(R) 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184 118
SH/50C(R) 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214 191
SH/75C(R) 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245 263
SH/75D(R) 4×3 60 245 363
SH/100D(R) 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365 626
SH/100E(R) 6×4 120 365 728
SH/150E(R) 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510 1473
SH/150F(R) 8×6 260 510 1496
SH/150R(R) 8×6 300 510 1655
SH/200F(R) 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686 3193
SH/200ST(R) 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686 3750
SH/250F(R) 12×10 260 936-1980 260-550 7-68 300-800 82 6 762 3760
SH/250ST(R) 12×10 560 936-1980 260-550 7-68 300-800 82 6 762 4318
SH/300ST(R) 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965 6409
SH/350TU(R) 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10



1067



10000



3.Performance Curve of CNSME® SH/100E (6/4E-) Slurry Pump:



6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery 1



4.Dimensional Drawing of CNSME® SH/100E (6/4E-) Slurry Pump:



6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery 2



5. CNSME® Slurry Pump On-Site Applications :



CNSME® Slurry pumps are widely popular pumps that are used for handling robust and difficult tasks as they have sturdy construction. Slurry Pumps can be used in the following industries: Pumps for grinding circuits, Tailings transfer, Cyclone feed, Pressure filter feed, Wash water (sand and gravel), Tunnel dewatering, FGD reactor feed (lime), Fly ing, Waste and Recycling, Pulp & Paper, etc.



6/4e- 4 Inch Heavy Duty Slurry Pump For Coal Washery 3
