AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump

AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump
AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump

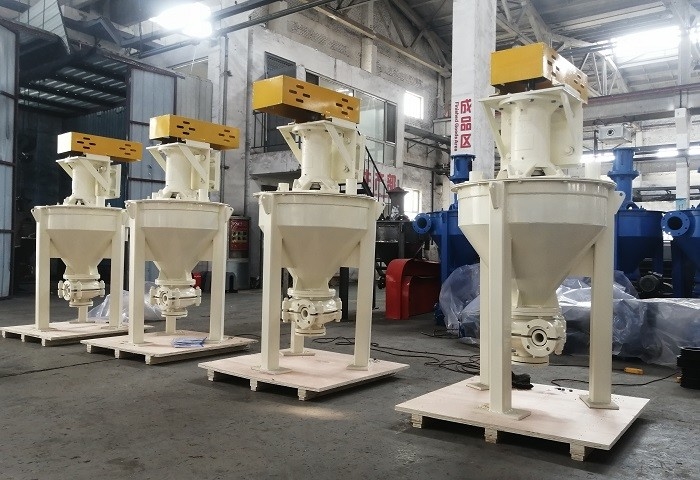

Large Image :  AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump

Product Details:
Place of Origin: CHINA
Brand Name: CNSME
Certification: ISO/CE
Model Number: 2QV-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Crate
Delivery Time: 7 Working Days
Payment Terms: T/T, Western Union,
Supply Ability: 30 Sets per Month
Detailed Product Description
Flowrate: 23.4-111m3/hr Speed: 800-1550rpm
Efficiency: Max. 65% Application: Sewage,Submersible,mining,muddy Water,Transfer Slurry
Material: Rubber 55 Feature: High Efficiency,Heavy Duty,High Flow,wear And Corrosion Resistant
Warranty: 1 Year Without Wet Parts Shaft Length: 1200mm
High Light:

grout mixer pump

,

foam transfer pump

      AF Series High-chrome Alloy Vertical Pump Deliver Foam Transfer Pump



Introduction:

AF series foam pump is a new generation product developed by our factory on the basis of absorbing foreign advanced technology, widely used in metallurgy, mining, coal, chemical and other departments.Suitable for conveying abrasive slurry containing foam, this series of pumps can effectively eliminate the foam in slurry when working.In the case of insufficient incoming materials can still work normally, especially suitable for a variety of flotation process, is the ideal product for conveying foam slurry.



Features:





Important design features of this range of CNSME Form Pumps include:


  • Double casing structure
  • High efficiency
  • Wear resistant
  • Excellent performance
  • Easy assembly & disassembly
  • Without any shaft seal and sealing water


1. This type of pump is used in sp-type bearing assembly. The bearing body is installed with a motor seat or an electric frame, which can be directly or indirectly driven.

2, the material box is made of steel structure or stainless steel, steel lined with rubber, with tangential inlet and overflow box, overflow box can be convenient to send the excess incoming material back to the material pool, tangential import can make the material quickly into the pump and eliminate part of the foam.

3, the pump head structure for the double pump shell structure, according to the different transmission media, the flow parts can be used: metal, rubber, or other non-metallic materials.

Drive Type: DC direct transmission, BD vertica/ horizontall belt transmission and other types.



AF froth pump have a vertical shaft configuration, and comprise a hopper, with vertical Bearing Assembly, and Type ‘SF’ pump wet-end. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casing liners and Impellers.





This series pump can enough destroy slurry froth in working.In lack of material situation,also can natural working .

This pump particular suitable for all kinds of flotation technological flowsheet.





AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump 0



Specifications:



Model SF-50QV (2QV-AF)
Discharge 2-inch
Capacity 7.6-42.8m3/h
TDH 6-29.5m
Rated Motor Power 15Kw
Speed 800-1800r/min
Max. Efficiency 45%





Pump Model Capacity (m3/h) Head (m) Speed (r/min) Eff. (%) Installed with power(kw) Diameter
Inlet(mm) Outlet(mm)
2QV-AF 7.6-42.8 6-29.5 800-1800 45 15 100 50
3QV-AF 23-77.4 5-28 700-1500 55 18.5 150 75
4RV-AF 33-187.2 5-28 500-1050 55 37 150 100
6SV-AF 80-393 5-28 250-680 55 75 200 150
8SV-AF 126-575 5.8-25.5 350-650 55 110 250 200


Froth Pump Construction:

Tank feeding froth pump







Our Froth Pumps projects:



AF series froth pump widely used in metallurgical, mining,coal and chemical sector.suitable to transport

corrosive slurry containing froth.



AF Series High-chrome Alloy Vertical Froth Pump Deliver Foam Transfer Pump 2
