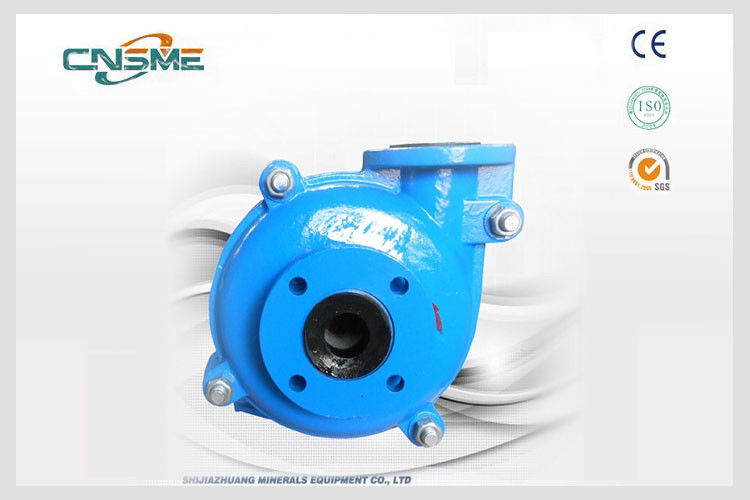

Horizontal Slurry Pump For Corrosive Slurry Transfer / Mining Open Impeller Type

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE

Model Number: 3/2C-R

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Neogotiable

Packaging Details: Plywood Crate

Delivery Time: 7 Working Days

Payment Terms: T/T, Western Union

Supply Ability: 300000 Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

rubber slurry pump

,

slurry pumps for mining

Theory:
Centrifugal Pump
Mounting Height:
Suction Centrifugal
Rubber Lining:
R33 R08
Pump Casing:
Horizontal Split Pumps
Impeller Type:
Open Type
Seal Type:
Expeller Ring Seal
Theory:
Centrifugal Pump
Mounting Height:
Suction Centrifugal
Rubber Lining:
R33 R08
Pump Casing:
Horizontal Split Pumps
Impeller Type:
Open Type
Seal Type:
Expeller Ring Seal
Description
Horizontal Slurry Pump For Corrosive Slurry Transfer / Mining Open Impeller Type

Horizontal Slurry Pump For Corrosive Slurry Transfer , Mining



Introduction:



3/2C-R rubber lined slurry pump is centrifugal horizontal slurry pump, it is designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.



Type R slurry pump adpot many kinds of sealing systems: expeller ring seal, gland packing seal, mechanical seal and all sorts of special combined seals:

1. Expeller drive seal: Use pressure seal produces by impeller and expeller in series, packing or lip sealing ring for shut down seal.

2. Packing seal: The routing sealing systems are suitable for various conditions and can be used in the corrosin or high temperature conditions such as polytetrafluoroethylene packing, graphite packing and etc. It also can be used in strong abrasive condition duty eith shaft ceramic sleeve of sprey weld.

3. Mechanical Seal: World-advanced sealing technique without sealing leakage, integrating construction installation & replacement, various construction suit for all kinds of conditions. High hardness creamic and alloy are adopted for material of friction parts. Design & macting of mechanical seal & sealing box is suitable for fluid state. It possesses high abrasive resistance & shakeproof to guarantee that sealing seffect can be satisfied by customers in various conditions.









Specifications:



Model SHR-50C
Outlet 2-inch
Capacity 36-75.6m3/h
TDH 13-46m
Rated Motor Power 30Kw
Speed 1300-2300r/min
NPSH 2-4m





Construction of Rubber Slurry Pump:

CV Slurry Pumps

Typical Applications:



Tailings

Heavy Mining

Ash Handling

Cyclone Feeds

Pulp and Paper

Corrosive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Heavy Refusal Removal



Standard Material of Wet-end Parts: Natural Rubber



Natural Rubber

Standard

Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃



Performance Curve:

WAR-MAN 3/2C Rubber Pumps
