4'' × 3'' Industrial Sludge Pump For Codelco Copper Mine Sludge

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO certificate /CE certificate

Model Number: SH/75C (4/3C)

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: wooden Crate

Delivery Time: 7 Working Days

Payment Terms: T/T, Western Union,L/C,D/A,D/P

Supply Ability: 30 Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

industrial sludge pump

,

4'' × 3'' industrial sludge pump

,

heavy duty slurry pump for mining

Flowrate:
162-360m3/hr
Head:
12-56m
Speed:
800-1550rpm
Efficiency:
Max. 65%
Impeller:
5-Vane Closed Type
Power:
Max. 30Kw
Application:
Slurry, Mining, Power Plants
Warranty:
1 Year Warranty(except Wearing Parts)
Flowrate:
162-360m3/hr
Head:
12-56m
Speed:
800-1550rpm
Efficiency:
Max. 65%
Impeller:
5-Vane Closed Type
Power:
Max. 30Kw
Application:
Slurry, Mining, Power Plants
Warranty:
1 Year Warranty(except Wearing Parts)
Description
4'' × 3'' Industrial Sludge Pump For Codelco Copper Mine Sludge

        Centrifugal Slurry Pumps 4'' × 3'' Pumps for Codelco Copper Mine Sludge



CNSME®​ centrifugal Slurry Pump is designed for heavy output, abrasive and corrosive, rolling mill discharge and efficient processes.



Our pump is used in hard rock, dredging, pulp and paper, as well as industrial business around the world.



We have exported the pumps to more than 20 countries to the world.Overseas service is available for customers.

We will use our quality and service to attract you and win you-an honorable friend and partner.

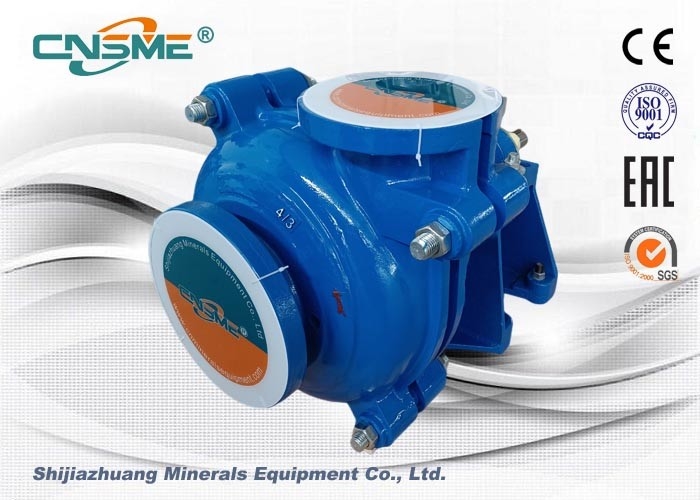

4'' × 3''  Industrial Sludge Pump For Codelco Copper Mine Sludge 0



About Centrifugal Slurry Pump


The centrifuge pump is used in many industrial applications such as quarry, mining, recycling and large manufacturing. They are designed for continuous pumping abrasive fluids, and wearing components can be simply replaced without replacing the entire pump.



Belt Protection Guard

The rear of the pump is a belt shroud, which protects the operator from the pulley and belt. It is easy to remove the perforated light leather cover such as this at need, which makes the pump faster and more maintenance.



Base

The pump is on a fixed base, but the slurry pump can also occupy the sliding base. The advantage of the sliding base is that it allows for easier and safer pumps during maintenance to open and close, which in turn reduces any user's downtime.



Shaft

The shaft is powered by the motor so that the impeller is rapidly rotating.



Bearing assembly

In view of the force placed on the impeller and the shaft, the role of the bearing assembly is to keep the shaft and impeller stability and proper alignment. Therefore, the slurry pump is much more and more robust bearing assembly than the water pump. The cassette can be adjusted backwards and then forward to change the impeller gap.



Volute  process

The volute housing accommodates the volute of the valve. This is a replaceable spare, rather than wearing a pump, etc., so it is easier and cheaper. The slurry enters the pump by a straw. The force of the rotating impeller pushes fluid into the discharge tube under high pressure.

Performance Parameter Data of Slurry Pump:

Slurry Pump SH Series Metal Slurry Pump Specifications

Pump
Model
S×D
(inch)
Allowable
Max. Power (kw)
Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
Weight
(kg)
Impeller m3/h l/s
SH/25B(R) 1.5×1 15 Metal
(A05)
12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152 91
SH/40B(R) 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184 118
SH/50C(R) 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214 191
SH/75C(R) 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245 263
SH/75D(R) 4×3 60 245 363
SH/100D(R) 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365 626
SH/100E(R) 6×4 120 365 728
SH/150E(R) 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510 1473
SH/150F(R) 8×6 260 510 1496
SH/150R(R) 8×6 300 510 1655
SH/200F(R) 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686 3193
SH/200ST(R) 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686 3750
SH/250F(R) 12×10 260 936-1980 260-550 7-68 300-800 82 6 762 3760
SH/250ST(R) 12×10 560 936-1980 260-550 7-68 300-800 82 6 762 4318
SH/300ST(R) 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965 6409
SH/350TU(R) 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10



1067



10000



Performance Curve:

4'' × 3''  Industrial Sludge Pump For Codelco Copper Mine Sludge 1



CNSME Pump on-site Applications:



Mining & Mineral Processing (Gold/Copper/Iron Ore/Lead&Zinc/Tin/Wolfram etc.)
Environmental Water & Sewage Treatment
Power & Oil (Bottom ash,lime slurry for FGD)
Chemical Industry (Phosphate/Potash/Chemical Fertilizer etc.)
Food And Other Industry (Sugar/Paper&Pulp/Tobacco)
Dredging (Sand&Gravel)

4'' × 3''  Industrial Sludge Pump For Codelco Copper Mine Sludge 2
