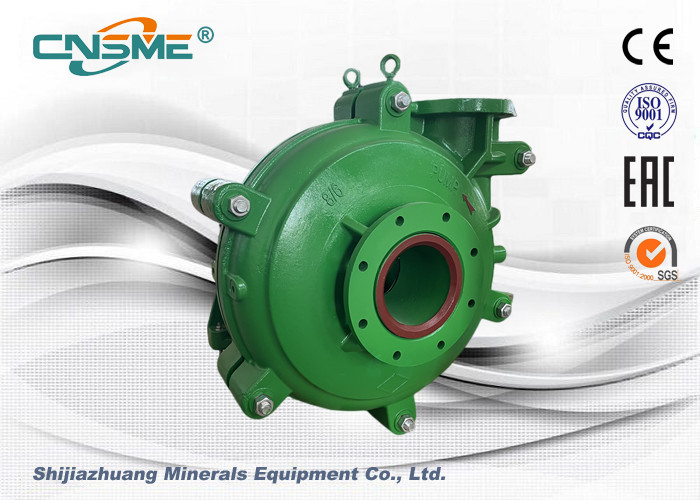

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color

Name: 6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color
Brand: CNSME
SKU: SH/150E (8/6E-)
Rating: 4.5 (186 reviews)

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE/EAC

Model Number: SH/150E (8/6E-)

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood Crate

Delivery Time: 10 Working Days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 1000 Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    6 inch heavy duty slurry pump, horizontal centrifugal heavy duty slurry pump, 6 inch heavy duty sludge pump


Material:	High Chrome Alloy A05	Feature:	Heavy Duty
Shaft Type:	Horizontal	Seal:	Expeller Seal, Packing Seal, Mechanical Seal
Delivery:	10 Days	Drive Type:	By Belts Or Coupling

Material:	High Chrome Alloy A05
Feature:	Heavy Duty
Shaft Type:	Horizontal
Seal:	Expeller Seal, Packing Seal, Mechanical Seal
Delivery:	10 Days
Drive Type:	By Belts Or Coupling

Description

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color

6-INCH HEAVY DUTY SLURRY SLUDGE PUMP CENTRIFUGAL HORIZONTAL TYPE WITH GREEN COLOR

Introduction:

Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.

SH/150E (8/6E-) is a very popular model among horizontal slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, and silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.

1) Simple structure in liner type, easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.

3) High-pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution.

5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.

Specifications:

Model	SH/150E
Outlet	6-inch
Capacity	360-828m3/h
TDH	10-61m
Rated Motor Power	120Kw
Speed	500-1300r/min
Max. Eff.	72%
NPSH	2-9m

Type	Size	Frame	Impeller:F6147A05	Shaft Seal Type	Frame Rating(KW)	Normal Max Speed(r/min)	Max. Passage Size(mm)
SH	150	E	5 Closed Metal Vanes, Diameter:510mm	Gland Packing, Expeller, Mechanical Seal	120	1300	63

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description

Material Name

Description

Hardness

A05

Ultrachrome

2.92

0.98

0.54

0.8

≤0.8

...

0.062

...

0.051

27% Cr Erosion Resistant White Iron

58-62HRC

Performance Curve:

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color 0

SECTIONAL DRAWING / EXPLODED VIEW:

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color 1

OUTLINE DIMENSIONS:

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color 2

MAIN WEAR PARTS:

IMPELLER	A05 HIGH CHROME ALLOY / NATURAL RUBBER
THROATBUSH	A05 HIGH CHROME ALLOY / NATURAL RUBBER
VOLUTE LINER	A05 HIGH CHROME ALLOY / NATURAL RUBBER
FRAME PLATE LINER INSERT	A05 HIGH CHROME ALLOY / NATURAL RUBBER

6 Inch Heavy Duty Slurry Pump Centrifugal Horizontal Type Green Color 3
