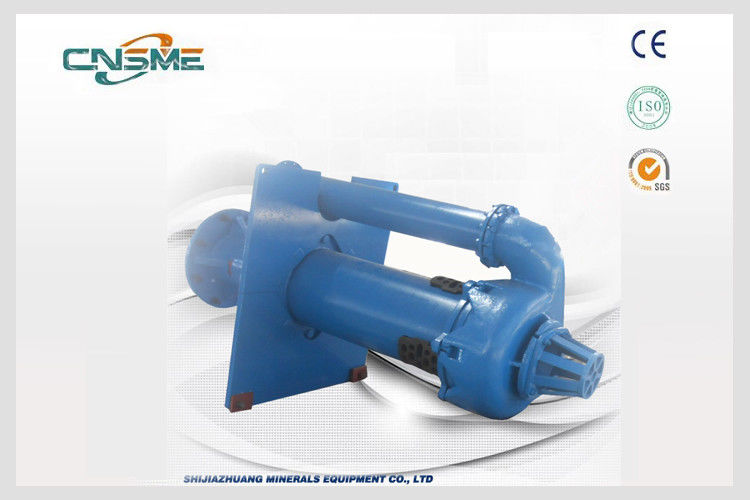

250TV - SP Oil Residue Vertical Slurry Pump Speed 400 - 750r / Min With 33.5m Head

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE

Model Number: 250TV-SP

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood Crate

Delivery Time: 10 Working Days

Payment Terms: T/T, Western Union

Supply Ability: 30000 Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

vertical centrifugal pump

,

vertical submersible pump

Material:
High Chrome Alloy A05
Feature:
Single Stage
Theory:
Centrifugal
Application:
Oil Residue
Type:
Vertical Cantilever
Head:
33.5m
Material:
High Chrome Alloy A05
Feature:
Single Stage
Theory:
Centrifugal
Application:
Oil Residue
Type:
Vertical Cantilever
Head:
33.5m
Description
250TV - SP Oil Residue Vertical Slurry Pump Speed 400 - 750r / Min With 33.5m Head

250TV - SP Oil Residue Vertical Turbine Slurry Sump With 33.5m Head



Introduction:



The rugged SME SP/SPR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. These pumps are proving their reliability and efficiency worldwide in:

• minerals processing;

• coal preparation;

• chemical processing;

• effluent handling;

• sand and gravel;

•and almost every other tank, pit or hole-in-theground slurry handling situation.



Vertical gritty slurry pump 250TV-SP is the second biggest model which SME can manufacture. The biggest model is SV/300T. For the vertical slurry pump, which is also named vertical turbine slurry pump or vertical sump pump, it can handle a maximum flowrate of 1000m3/h.



Specifications:



Model SV-250T
Capacity 261-1089m3/h
TDH 7.5-33.5m
Rated Motor Power 200Kw
Speed 400-750r/min
Max. Efficiency 60%
Standard Shaft Length 2100mm



Materials of Construction:



Part Description Material
Casing A05- High Chromium Alloy
Impeller A05- High Chromium Alloy
Back Liner A05- High Chromium Alloy
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Metal





Material: High Chrome Alloy A05



Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC





Performance Curve:



Type Size Frame Impeller: SV25206A05 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SP. 250 T 5 Open Type Metal Vans, Diameter:605mm Gland Packing, Expeller, Mechanical Seal 200 750 65





SV SP Vertical Metal Sump Pump Specifations

Pump
Model
S×D
(mm)
Allowable
Max. Power
(kw)
Material Clear Water Performance Impeller
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
Length
Shaft (mm)
No. of
Vanes
Vane Dia.
(mm)
Weight
(kg)
Impeller m3/h l/s
SV/40P 80×40 15 Metal
(A05)
19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 285
SV/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 432
SV/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 867
SV/150S 240×150 110 108-479.16 30-133.1 8.5-40 500-1000 52 1800 480 1737
SV/200S 320×200 110 189-891 152.5-247.5 6.5-37 400-850 64 2100 550 2800
SV/250T   200 180-1080 50-300 10-35 400-750 60 2400 605 3700
SV/300T   200 180-1440 50-400 5-30 350-700 62.1 2400 610



Material of Metal Lined Vertical Slurry Pump:



No Parts name Materials
1 Shaft 4140 High Tensile Steel*
2 Bearing SKF/Timken(Standard)
3 Bearing Housing HT250
4 Bearing spacer 420 Stainless Steel
5 Bearing SKF/Timken(Standard)
6 Shim 20# Stainless steel
7 Column 20# Stainless steel
8 Strainer QT500-7
9 Back liner 27.5% UltraChrome Alloy
10 Impeller 27.5% UltraChrome Alloy
11 Pump casing 27.5% UltraChrome Alloy
12 Lower strainer QT500-7
13 Discharge pipe 20# Stainless steel
14 Flushing pipe Q235 Carbon steel
15 Coupling 45# Steel
16 Middle supporting parts 20# Stainless steel



Construction of SV Sump Pumps:



1 SHAFT                                    9 BACK LINER
2 BEARING                                10 IMPELLER
3 BEARING HOUSING                11 PUMP CASING
4 BEARING SPACER                  12 LOWER STRAINER
5 BEAIRING                               13 DISCHARGE PIPE
6 SHIM                                       14 FLUSHING PIPE
7 COLUMN                                 15 COUPLING PART
8 STRAINER                              16 MIDDLE SUPPORT PART
