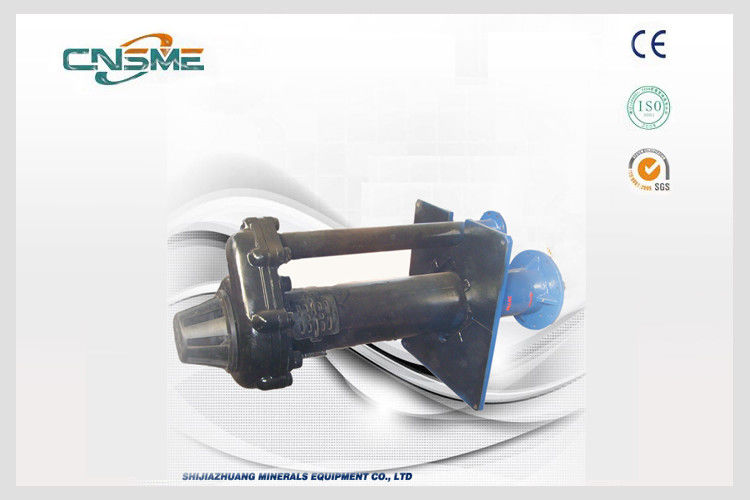

High Efficiency Vertical Centrifugal Sump Pump , Chemical Resistant Submersible Sump Pump

Product Details

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE

Model Number: 100RV/SP

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood Crate

Delivery Time: 7 Working Days

Payment Terms: T/T, Western Union

Supply Ability: 300000 Sets per Month

Get Best Price
Contact Now
Specifications
High Light:

floor sump pump

,

chemical resistant sump pump

Material:
Natural Rubber
Application:
For Corrosive Slurry
Type:
Vertical Cantilever
Theory:
Centrifugal Heavy Duty
Feature:
With Selfagitating , Non Clog Impellers
Brand:
1500mm
Material:
Natural Rubber
Application:
For Corrosive Slurry
Type:
Vertical Cantilever
Theory:
Centrifugal Heavy Duty
Feature:
With Selfagitating , Non Clog Impellers
Brand:
1500mm
Description
High Efficiency Vertical Centrifugal Sump Pump , Chemical Resistant Submersible Sump Pump

100RV / SPR Slurry Sump Pump With Selfagitating , Non Clog Impellers



Introduction:



Fratures of Vertical Rubber Sump Pump SVR-100R:



The ‘SPR’ range is vertical cantilevered shaft design similar to the ‘GPS’, but features full elastomer protection on all submerged components. This allows this pump to be used in highly corrosive applications. Available in sizes ranging from 40mm through to 150mm



Fully Cantilevered – Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.

Impellers – Unique double suction impellers; fluid flow enters the top as well as the bottom. This design eliminates shaft seals and reduces thrust load on the bearings.

Large Particle – Large particle impellers are also available and enable passing unusually large solids.

Bearing Assembly – The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.

Manufacturer and exporter of rubber lined slurry pumps, our product range also comprises of abrasive slurry pumps, chemical process slurry pumps and vertical extended shaft slurry pumps.



Specifications:



Model SVR-100R
Capacity 54-289m3/h
TDH 5-35m
Rated Motor Power 75Kw
Speed 500-1200r/min
Max. Efficiency 56%
Standard Shaft Length 1500mm



Materials of Construction:



Part Description Material
Casing - Black Natural Rubber
Impeller - Black Natural Rubber
Back Liner - Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber







Specifications:



Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃






Performance Curve:


Type Size Frame Impeller:SVR10206 Shaft Seal Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SPR 100 R 5 Open Type Rubber Vans, Diameter:390mm Gland Packing, Expeller, Mechanical Seal 75 1200 40



SVR Series Vertical Rubber Sump Pump Specifations & Prices

Pump
Model
S×D
(mm)
Allowable
Max. Power
(kw)
Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
Length
Shaft (mm)
No. of
Vanes
Vane Dia.
(mm)
Weight
(kg)
Impeller m3/h l/s
SVR/40P 80×40 15 Rubber
()
19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 275
SVR/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 420
SVR/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 850
SVR/150S 240×150 110 72-504 20-140 10-35 500-1000 56 1800 480 1720






Construction of Vertical Slurry Pump:



Serial Number Parts Name Serial Number Parts Name

1 SHAFT                           9 BACK LINER
2 BEARING                       10 IMPELLER
3 BEARING HOUSING       11 PUMP CASING
4 BEARING SPACER         12 LOWER STRAINER
5 BEAIRING                       13 DISCHARGE PIPE
6 SHIM                               14 FLUSHING PIPE
7 COLUMN                         15 COUPLING PART
8 STRAINER                      16 MIDDLE SUPPORT PART

 Feed Sump Pump



Projects with Vertical Slurry Pumps:

Overflow Tank Pumps



SME SPR Sump Pump Orders:
