Material: | Moulded Elastomer | Usage: | Coal Washing |
---|---|---|---|
Pressure: | Medium Pressure | Seal Type: | Mechanical Seal |
Shaft: | Horizontal | Inner Liners: | Rubber Coated |
High Light: | centrifugal slurry pump,rubber slurry pump |

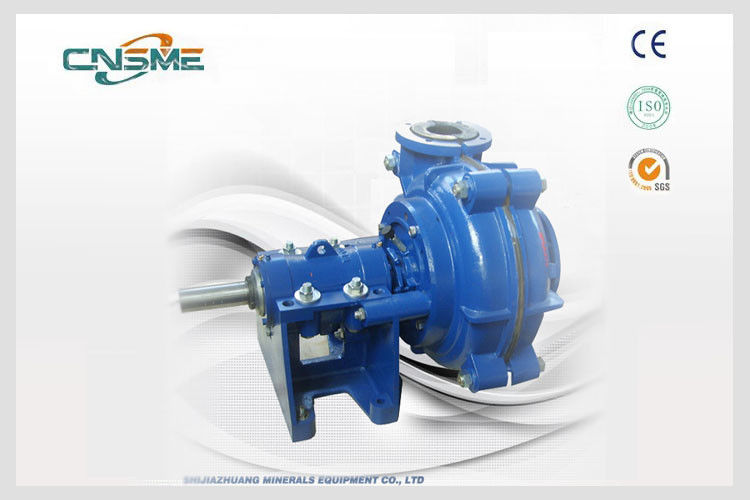

Fly Ash Slurry Pump 60Kw Bare Shaft with 5 Vane Closed Impellers
Introduction:
SHR/100D is a 6/4D-R rubber pump with a max. capacity of 324 cubit meters and head up to 45m. The max. mating power is 60Kw, driven by electric motors and/or diesel engines.
Impeller:
The impeller may be either moulded elastomer or hard metal. Deep side sealing vanes relieve seal pressure and minimise recirculation. Cast-in impeller threads are better suited for slurries than impeller inserts or nuts.
Pump Base:
A one piece casting cradles the cartridge bearing assembly. A minimum number of through bolts hold the pump casing to the frame. A means of impeller adjustment is provided in a convenient position below the bearing housing.
Specifications:
Model | SHR-100D |
Outlet | 4-inch |
Capacity | 144-324m3/h |
TDH | 12-45m |
Rated Power | 60Kw |
Speed | 800-1350r/min |
NPSH | 3-5m |
Construction of Slurry Pump:
Typical Applications:
Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal
Standard Material of Wet-end Parts: Natural Rubber
Natural Rubber | Standard |
Hardness(Shore A) | 52±3 |
300% Stretching Strength(MPa) | ≥4 |
Tensile Strength(MPa) | ≥21 |
Elongation at Break(%) | ≥500 |
Tensile Set at Break(%) | ≤25 |
Rubber to Metal Bonding Pull Strength(MPa) | ≥5 |
Akron Abrasion cm3/1.61km | ≤0.08 |
Acid & Alkali Resistant PH Value(Liquid) | 3-12≤65℃ |
Performance Curve:
